1000 SERIES 1100 ALUMINUM PLATE 1100 ALUMINUM SHEET MANUFACTURER
Description: 1100 Aluminum Sheet is a pure aluminum sheet with an aluminum content of 99%, making it a non-heat-treatable aluminum. This aluminum sheet exhibits excellent corrosion resistance, good thermal conductivity, and favorable formability. Widely used in the chemical, food, and pharmaceutical industries, as well as in construction, decoration, and electronics fields, 1100 aluminum sheet finds applications in manufacturing storage tanks, heat exchangers, kitchenware, decorative pieces, casings, and circuit boards, among others.
Superior Metal Aluminum can customize the production of 1100 aluminum sheet plates, with a thickness of 10-600mm and a width of 300-2800mm.
The Most Common Tempers For 1100 Aluminium Sheet Are:
O - Soft
H14 - Work hardened by rolling to half hard, not annealed after rolling
1100 Aluminum Equivalent Grades
| JIS | UNS | ISO | DIN | W-Nr. | EN/NF | EN | GOST | SS | EN/BS |
| 1100 | A91100 | Al99.0Cu | - | - | 1100 | EN AW-Al99.0Cu | EN AW-1100 | АД | - | 1100 |
1100 Chemical Composition Content (%)
| Component | Fe | Si | Mn | Cu | Ti | V | Al | Zn | Mg | Other |
| Min. | - | - | - | 0.05 | - | - | 99 | - | - | - |
| Max. | (Si+Fe)≤0.95 | 0.05 | 0.2 | 0.03 | 0.05 | - | 0.1 | 0.05 | 0.15 |

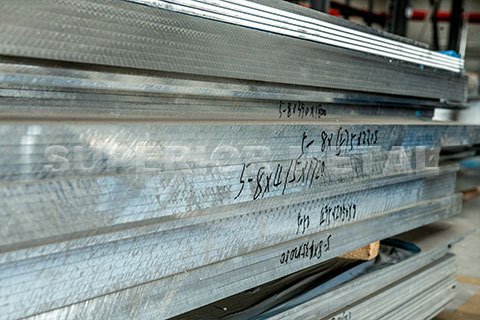

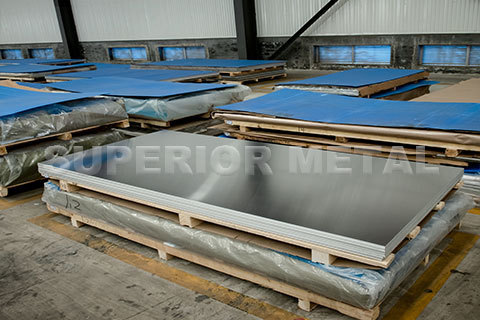

1100 Aluminium Plate Show
| Type | 1100 aluminum flat sheet, 1100 aluminum sheet metal, 1100 alu sheet, 1100 aluminum sheets for sale |
| Standard | GB/T3190-2008, GB/T3880-2006, ASTM B209, EN 573, JIS H4000-2006,etc |
Available Aluminum Grades | 1000, 2000, 3000, 4000, 5000, 6000, 7000series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2A12, 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. g) 7000 Series: 7075, etc. |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28, H32, H112, T651, T3, T451, T4, T6, F, etc |
Common Thickness | 0.1mm - 260mm |
Common Width | 1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size |
Common Length | 1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size |
| Surface | Mill Finish, PVDF/PE Color Coated, Anodized, Embossed, Brushed, Mirror Polish, etc PVC Film Covering Protection (Blue/White) |
OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Quality | Mill Quality Certificate, JB/T9001C, ISO9001, SGS, TUV |
| Delivery | In general, within 7-15 working days after receiving deposit or According to Final order quantity |
| Usage | Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc |
CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
STANDARD SIZES OF ALUMINUM PLATE FACTORY
| Thick | Standard Wdith x Length | Thick | Standard Wdith x Length | Thick | Standard Wdith x Length | Thick | Standard Wdith x Length |
| 0.2mm | 1000x2000mm, 1250x2500mm | 0.3mm | 1000x2000mm, 1250x2500mm | 0.4mm | 1000x2000mm, 1250x2500mm | 0.5mm | 1000x2000mm, 1250x2500mm |
| 0.6mm | 1000x2000mm, 1250x2500mm | 0.8mm | 1219x2438mm, 1250x2500mm | 1.0mm | 1219x2438mm, 1250x2500mm | 1.2mm | 1219x2438mm, 1250x2500mm |
| 1.5mm | 1219x2438mm, 1250x2500mm | 2.0mm | 1219x2438mm, 1250x2500mm | 2.5mm | 1219x2438mm, 1250x2500mm | 3.0mm | 1219x2438mm, 1250x2500mm |
| 4.0mm | 1219x2438mm, 1250x2500mm | 5.0mm | 1219x2438mm, 1250x2500mm | 6.0mm | 1219x2438mm, 1250x2500mm | 8.0mm | 1219x2438mm, 1250x2500mm |
| 10mm | 1250x2500mm, 1500x3000mm | 12mm | 1250x2500mm, 1500x3000mm | 15mm | 1250x2500mm, 1500x3000mm | 20mm | 1250x2500mm, 1500x3000mm |
| 25mm | 1250x2500mm, 1500x3000mm | 30mm | 1250x2500mm, 1500x3000mm | 35mm | 1250x2500mm, 1500x3000mm | 40mm | 1250x2500mm, 1500x3000mm |
| 45mm | 1250x2500mm, 1500x3000mm | 50mm | 1250x2500mm, 1500x3000mm | 55mm | 1250x2500mm, 1500x3000mm | 60mm | 1250x2500mm, 1500x3000mm |
| 65mm | 1250x2500mm, 1500x3000mm | 70mm | 1250x2500mm, 1500x3000mm | 75mm | 1250x2500mm, 1500x3000mm | 80mm | 1250x2500mm, 1500x3000mm |
| 85mm | 1250x2500mm, 1500x3000mm | 90mm | 1250x2500mm, 1500x3000mm | 95mm | 1250x2500mm, 1500x3000mm | 100mm | 1250x2500mm, 1500x3000mm |
| 110mm | 1250x2500mm, 1500x3000mm | 120mm | 1250x2500mm, 1500x3000mm | 130mm | 1250x2500mm, 1500x3000mm | 140mm | 1250x2500mm, 1500x3000mm |
| 150mm | 1250x2500mm, 1500x3000mm | 160mm | 1250x2500mm, 1500x3000mm | 170mm | 1250x2500mm, 1500x3000mm | 180mm | 1250x2500mm, 1500x3000mm |
| 190mm | 1250x2500mm, 1500x3000mm | 200mm | 1250x2500mm, 1500x3000mm | 250mm | 1250x2500mm, 1500x3000mm | 300mm | 1250x2500mm, 1500x3000mm |
| 350mm | 1250x2500mm, 1500x3000mm | 400mm | 1250x2500mm, 1500x3000mm | We Can Customize Any Size, Please Contact US. |
| Remark: |
| Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm, 1250mm x 2500mm and any cut to size |
| Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm, 1219mm x 2438mm (4' x 8'), 1500mm x 3000mm and any cut to size |
