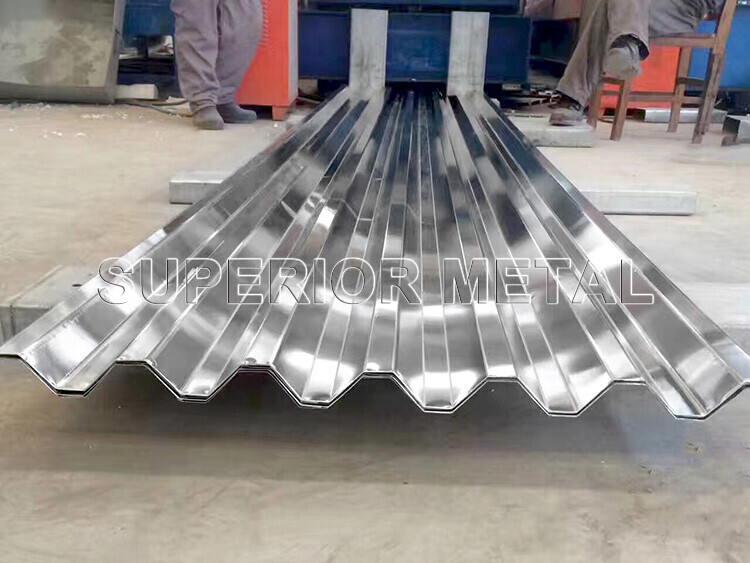

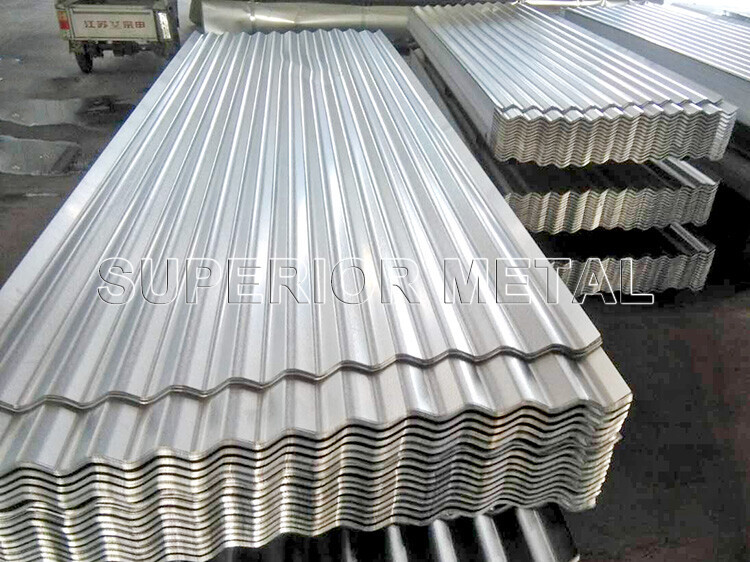

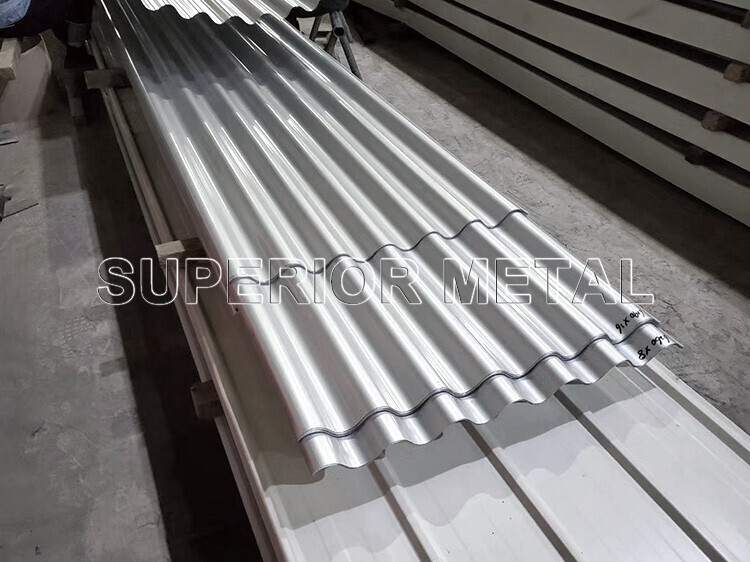

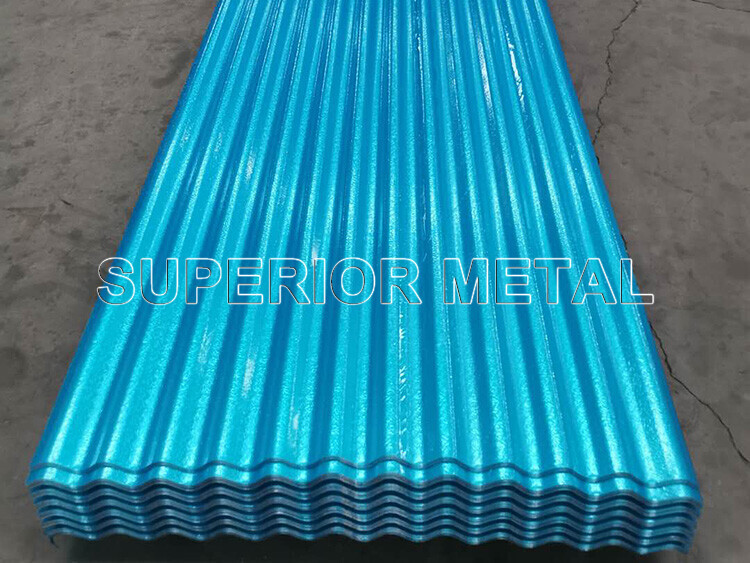

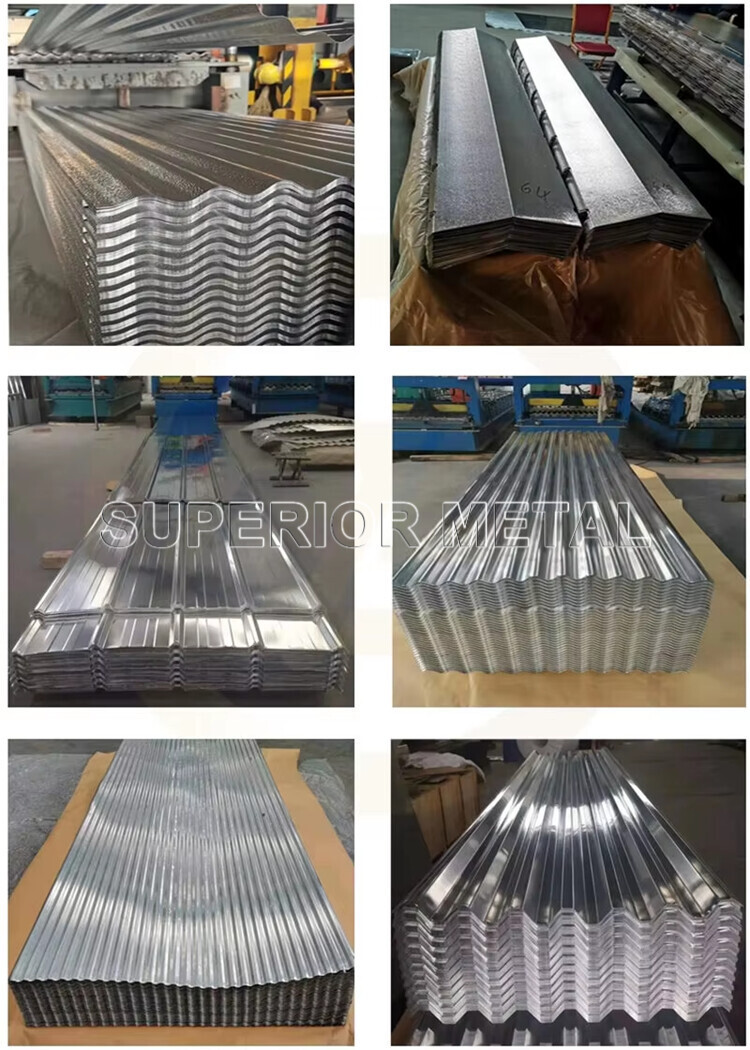

Aluminum Corrugated Sheet Supplier
● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.
● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.
● Standard Export Package: Wooden Case or Wooden Pallet
● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate
● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV
● Price: Quote according to the Specifications and Order Quantity you need
● Datas Required Before Quotation:
①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways
| Products | Corrugated aluminum roofing sheet |
| Size | CUSTOMIZATION. Super long sheet can be produced here. |
| Standard | GB/T 3880--2012 or ASTM B209 |
| Alloy | 1050 1060 1100 3003 3004 3005 3104 3105 5052 |
| Temper | O H12 H14 H16 H18 H19 H22 H24 H26 H28 H32 |
| Thickness range | 0.2-1.5mm |
| Width range | 750 836 840 850 900 1150 |
| Lengh range | As customers' request |
| Surface | Mill finish or embossed or color coated |
| Film | Film coated or nothing. |
| MOQ | Depend on size. Usually 3-6tons. |
| Production process | DC or CC |
| Certificate of Origin | CO, Form E, Form A etc. |
CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
