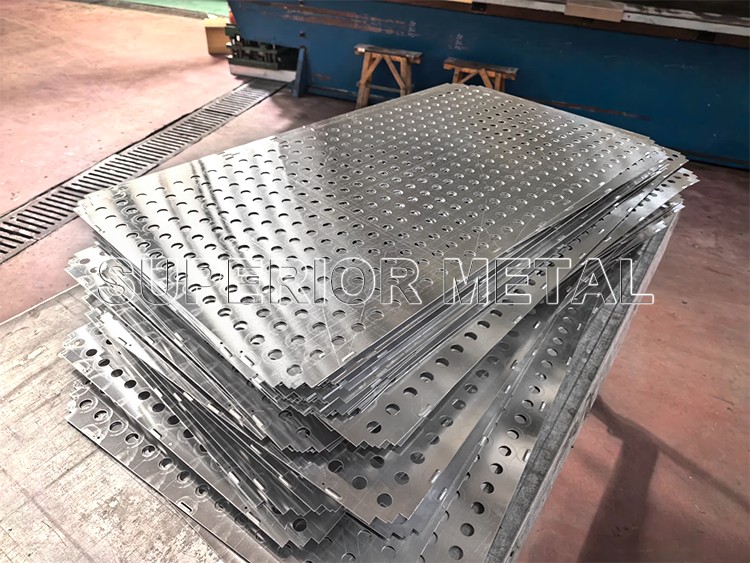

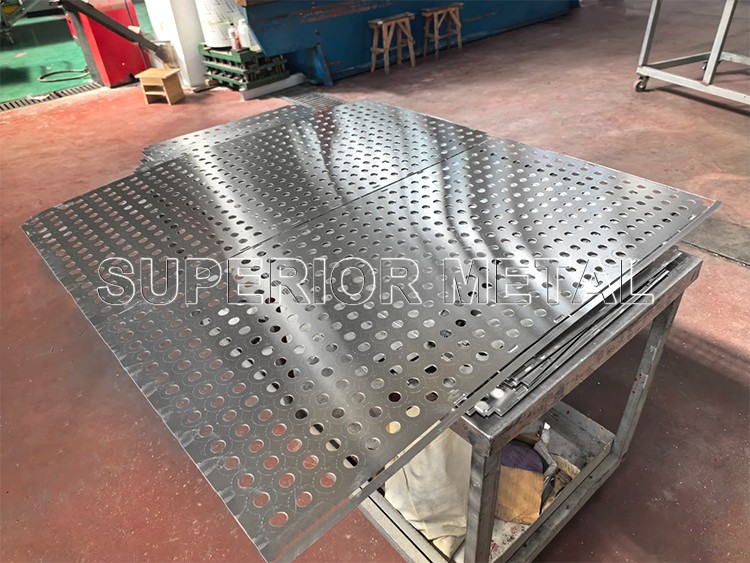

1070 Aluminum Perforated Sheet

● MOQ: 1 Ton Each
● Loading Port: China Port
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.
● Country of Origin: China



E-mail：sale01@jdxtg.com



Tel：+86 13303412199



WhatsApp：8613303412199

Get Live Quotes

1000 SERIES 1070 ALUMINUM PLATE 1070 ALUMINUM SHEET MANUFACTURER

Description: ALUMINIUM ALLOY ASTM B209/ ASME SB209 1070 SHEETS & PLATES, COMMERCIALLY PURE EN AW-1070A UNS A91070 ALUMINIUM SHEETS & PLATES SUPPLIER & EXPORTER IN KUWAIT, QATAR, AFRICA, EUROPE, UK, USA, IRAN, GHANA & WORLDWIDE.

The Most Common Tempers For 1070 Aluminium Sheet Are:

O - Soft

H14 - Work hardened by rolling to half hard, not annealed after rolling

1070 Aluminum Equivalent Grades

JIS	UNS	ISO	DIN	W-Nr.	EN/NF	EN		GOST	SS	EN/BS
1070	A91070	Al99.7	Al99.7	3.0275	1070	EN AW-Al99.7	EN AW-1070	АД00Е	Al99.7	1070

1070 Chemical Composition Content (%)

Component	Fe	Si	Mn	Cu	Ti	V	Al	Zn	Mg	Other
Min.	-	-	-	-	-	-	99.7	-	-	-
Max.	0.25	0.20	0.03	0.04	0.03	0.05	-	0.04	0.03	0.03

1070 Aluminium Plate Show

Type	1070 aluminum flat sheet, 1070 aluminum sheet metal, 1070 alu sheet, 1070 aluminum sheets for sale
Standard	GB/T3190-2008, GB/T3880-2006, ASTM B209, EN 573, JIS H4000-2006,etc
Available Aluminum Grades	1000, 2000, 3000, 4000, 5000, 6000, 7000series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2A12, 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. g) 7000 Series: 7075, etc.
Temper	O, H12, H14, H16, H18, H22, H24, H26, H28, H32, H112, T651, T3, T451, T4, T6, F, etc
Common Thickness	0.1mm - 260mm
Common Width	1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size
Common Length	1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size
Surface	Mill Finish, PVDF/PE Color Coated, Anodized, Embossed, Brushed, Mirror Polish, etcPVC Film Covering Protection (Blue/White)
OEM service	Perforated, Cutting special size, Doing flatness, Surface treatment,etc
Quality	Mill Quality Certificate, JB/T9001C, ISO9001, SGS, TUV
Delivery	In general, within 7-15 working days after receiving deposit or According to Final order quantity
Usage	Construction filed, Ships building industry, Decoration, Industry,Manufacture, Machinery and hardware fields, etc

CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:

Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:

Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12

STANDARD SIZES OF ALUMINUM PLATE FACTORY

Thick	Standard Wdith x Length	Thick	Standard Wdith x Length	Thick	Standard Wdith x Length	Thick	Standard Wdith x Length
0.2mm	1000x2000mm, 1250x2500mm	0.3mm	1000x2000mm, 1250x2500mm	0.4mm	1000x2000mm, 1250x2500mm	0.5mm	1000x2000mm, 1250x2500mm
0.6mm	1000x2000mm, 1250x2500mm	0.8mm	1219x2438mm, 1250x2500mm	1.0mm	1219x2438mm, 1250x2500mm	1.2mm	1219x2438mm, 1250x2500mm
1.5mm	1219x2438mm, 1250x2500mm	2.0mm	1219x2438mm, 1250x2500mm	2.5mm	1219x2438mm, 1250x2500mm	3.0mm	1219x2438mm, 1250x2500mm
4.0mm	1219x2438mm, 1250x2500mm	5.0mm	1219x2438mm, 1250x2500mm	6.0mm	1219x2438mm, 1250x2500mm	8.0mm	1219x2438mm, 1250x2500mm
10mm	1250x2500mm, 1500x3000mm	12mm	1250x2500mm, 1500x3000mm	15mm	1250x2500mm, 1500x3000mm	20mm	1250x2500mm, 1500x3000mm
25mm	1250x2500mm, 1500x3000mm	30mm	1250x2500mm, 1500x3000mm	35mm	1250x2500mm, 1500x3000mm	40mm	1250x2500mm, 1500x3000mm
45mm	1250x2500mm, 1500x3000mm	50mm	1250x2500mm, 1500x3000mm	55mm	1250x2500mm, 1500x3000mm	60mm	1250x2500mm, 1500x3000mm
65mm	1250x2500mm, 1500x3000mm	70mm	1250x2500mm, 1500x3000mm	75mm	1250x2500mm, 1500x3000mm	80mm	1250x2500mm, 1500x3000mm
85mm	1250x2500mm, 1500x3000mm	90mm	1250x2500mm, 1500x3000mm	95mm	1250x2500mm, 1500x3000mm	100mm	1250x2500mm, 1500x3000mm
110mm	1250x2500mm, 1500x3000mm	120mm	1250x2500mm, 1500x3000mm	130mm	1250x2500mm, 1500x3000mm	140mm	1250x2500mm, 1500x3000mm
150mm	1250x2500mm, 1500x3000mm	160mm	1250x2500mm, 1500x3000mm	170mm	1250x2500mm, 1500x3000mm	180mm	1250x2500mm, 1500x3000mm
190mm	1250x2500mm, 1500x3000mm	200mm	1250x2500mm, 1500x3000mm	250mm	1250x2500mm, 1500x3000mm	300mm	1250x2500mm, 1500x3000mm
350mm	1250x2500mm, 1500x3000mm	400mm	1250x2500mm, 1500x3000mm	We Can Customize Any Size, Please Contact US.
Remark:
Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm, 1250mm x 2500mm and any cut to size
Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm, 1219mm x 2438mm (4' x 8'), 1500mm x 3000mm and any cut to size
