1000 SERIES 1060 ALUMINUM PLATE 1060 PURE ALUMINUM SHEET MANUFACTURER
Description: 1060 is a pure aluminum alloy with a small amount of copper added, which provides excellent formability, high corrosion resistance, good weldability, and conductivity. It is widely used in products that do not require high strength, such as chemical equipment, thin sheet processing, deep-drawn or spun dishes, welded parts, heat exchangers, clock faces and dials, nameplates, kitchenware, decorations, and reflective devices.
Superior Metal Aluminum can customize the production of 1060 aluminum sheet plates, with a thickness of 10-600mm and a width of 300-2800mm.
The Most Common Tempers For 1060 Aluminium Sheet Are:
O - Soft
H24 Temper - It is a combination of work hardening and partial annealing achieved through cold rolling and partial annealing treatment. The material possesses a certain level of hardness and strength while retaining some ductility
1060 Aluminum Equivalent Grades
| JIS | UNS | ISO | DIN | W-Nr. | EN/NF | EN | GOST | SS | EN/BS |
| 1060 | A91060 | Al99.6 | - | - | 1060 | EN AW-Al99.6 | EN AW-1060 | - | - | 1060 |
1060 Chemical Composition Content (%)
| Component | Fe | Si | Mn | Cu | Ti | V | Al | Zn | Mg | Other |
| Min. | - | - | - | - | - | - | 99.6 | - | - | - |
| Max. | 0.35 | 0.25 | 0.03 | 0.05 | 0.03 | 0.05 | - | 0.05 | 0.03 | 0.03 |

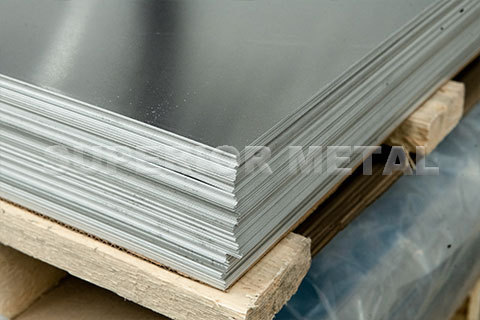

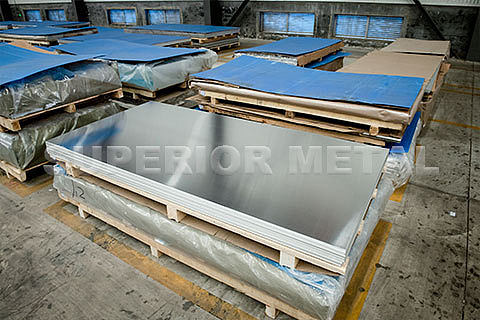

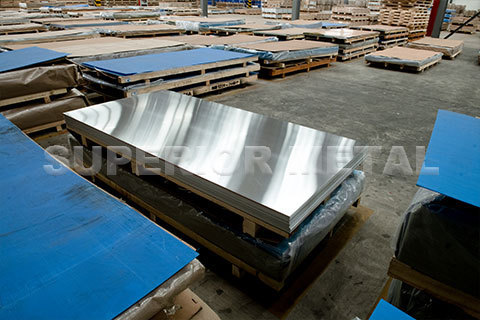

1060 Aluminium Plate Show
| Type | 1060 aluminum flat sheet, 1060 aluminum sheet metal, 1060 alu sheet, 1060 aluminum sheets for sale |
| Standard | GB/T3190-2008, GB/T3880-2006, ASTM B209, EN 573, JIS H4000-2006,etc |
| Available Aluminum Grades | 1000, 2000, 3000, 4000, 5000, 6000, 7000series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2A12, 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. g) 7000 Series: 7075, etc. |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28, H32, H112, T651, T3, T451, T4, T6, F, etc |
| Common Thickness | 0.1mm - 260mm |
Common Width | 1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size |
| Common Length | 1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size |
| Surface | Mill Finish, PVDF/PE Color Coated, Anodized, Embossed, Brushed, Mirror Polish, etc PVC Film Covering Protection (Blue/White) |
OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Quality | Mill Quality Certificate, JB/T9001C, ISO9001, SGS, TUV |
| Delivery | In general, within 7-15 working days after receiving deposit or According to Final order quantity |
| Usage | Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc |
CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
STANDARD SIZES OF ALUMINUM PLATE FACTORY
| Thick | Standard Wdith x Length | Thick | Standard Wdith x Length | Thick | Standard Wdith x Length | Thick | Standard Wdith x Length |
| 0.2mm | 1000x2000mm, 1250x2500mm | 0.3mm | 1000x2000mm, 1250x2500mm | 0.4mm | 1000x2000mm, 1250x2500mm | 0.5mm | 1000x2000mm, 1250x2500mm |
| 0.6mm | 1000x2000mm, 1250x2500mm | 0.8mm | 1219x2438mm, 1250x2500mm | 1.0mm | 1219x2438mm, 1250x2500mm | 1.2mm | 1219x2438mm, 1250x2500mm |
| 1.5mm | 1219x2438mm, 1250x2500mm | 2.0mm | 1219x2438mm, 1250x2500mm | 2.5mm | 1219x2438mm, 1250x2500mm | 3.0mm | 1219x2438mm, 1250x2500mm |
| 4.0mm | 1219x2438mm, 1250x2500mm | 5.0mm | 1219x2438mm, 1250x2500mm | 6.0mm | 1219x2438mm, 1250x2500mm | 8.0mm | 1219x2438mm, 1250x2500mm |
| 10mm | 1250x2500mm, 1500x3000mm | 12mm | 1250x2500mm, 1500x3000mm | 15mm | 1250x2500mm, 1500x3000mm | 20mm | 1250x2500mm, 1500x3000mm |
| 25mm | 1250x2500mm, 1500x3000mm | 30mm | 1250x2500mm, 1500x3000mm | 35mm | 1250x2500mm, 1500x3000mm | 40mm | 1250x2500mm, 1500x3000mm |
| 45mm | 1250x2500mm, 1500x3000mm | 50mm | 1250x2500mm, 1500x3000mm | 55mm | 1250x2500mm, 1500x3000mm | 60mm | 1250x2500mm, 1500x3000mm |
| 65mm | 1250x2500mm, 1500x3000mm | 70mm | 1250x2500mm, 1500x3000mm | 75mm | 1250x2500mm, 1500x3000mm | 80mm | 1250x2500mm, 1500x3000mm |
| 85mm | 1250x2500mm, 1500x3000mm | 90mm | 1250x2500mm, 1500x3000mm | 95mm | 1250x2500mm, 1500x3000mm | 100mm | 1250x2500mm, 1500x3000mm |
| 110mm | 1250x2500mm, 1500x3000mm | 120mm | 1250x2500mm, 1500x3000mm | 130mm | 1250x2500mm, 1500x3000mm | 140mm | 1250x2500mm, 1500x3000mm |
| 150mm | 1250x2500mm, 1500x3000mm | 160mm | 1250x2500mm, 1500x3000mm | 170mm | 1250x2500mm, 1500x3000mm | 180mm | 1250x2500mm, 1500x3000mm |
| 190mm | 1250x2500mm, 1500x3000mm | 200mm | 1250x2500mm, 1500x3000mm | 250mm | 1250x2500mm, 1500x3000mm | 300mm | 1250x2500mm, 1500x3000mm |
| 350mm | 1250x2500mm, 1500x3000mm | 400mm | 1250x2500mm, 1500x3000mm | We Can Customize Any Size, Please Contact US. |
| Remark: |
| Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm, 1250mm x 2500mm and any cut to size |
| Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm, 1219mm x 2438mm (4' x 8'), 1500mm x 3000mm and any cut to size |
