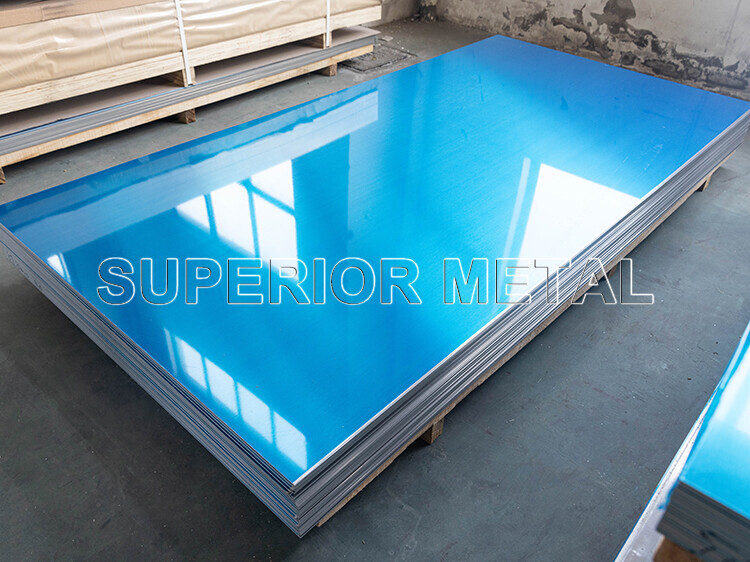

Aircraft Grade Aluminum Plate Supplier
● Model Number: AL7075
● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.
● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.
● Standard Export Package: Wooden Case or Wooden Pallet
● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate
● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV
● Price: Quote according to the Specifications and Order Quantity you need
● Datas Required Before Quotation:
①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways
| Type | Aircraft Grade Aluminium sheet, Aircraft Grade Aluminium plate, Aircraft Grade Aluminium alloy sheet, Aircraft Grade Aluminium alloy plate |
| Standard | GB/T3190-2008,GB/T3880-2006 ,ASTM B209,JIS H4000-2006,etc |
| Grades | 1000, 2000, 3000, 4000, 5000, 6000, 7000 series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2A12, 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. g) 7000 Series: 7075, etc. |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28, H32, F, H112, T651, T3, T451, T4, T6, etc |
Common Thickness | 0.1mm - 260mm |
Common Width | 1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size |
Common Length | 1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size |
| Surface | Mill finished, Coated, Embossed ,Brushed, Polished, Mirror, Anodized,etc |
OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Quality | Certificate of Test,JB/T9001C ,ISO9001,SGS,TVE |
| Protection | Plastic film covering |
| Delivery | In general, within 7-15 working days after receiving deposit or According to Final order quantity |
| Usage | Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc |
| STANDARD THICKNESS OF 7075 ALUMINUM ALLOY PLATE FACTORY: |
| 0.2mm | 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.8mm |
| 1.0mm | 1.2mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm |
| 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10mm | 12mm |
| 15mm | 20mm | 25mm | 30mm | 35mm | 40mm |
| 45mm | 50mm | 55mm | 60mm | 65mm | 70mm |
| 75mm | 80mm | 85mm | 90mm | 95mm | 100mm |
| 105mm | 110mm | 115mm | 120mm | 125mm | 130mm |
| 135mm | 140mm | 145mm | 150mm | 155mm | 160mm |
| 165mm | 170mm | 175mm | 180mm | 185mm | 190mm |
| 195mm | 200mm | We Can Customize Any Size, Please Contact US. |
| Remark: |
| Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm |
| Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm |
CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
