5000 SERIES 5005 ALUMINUM PLATE 5005A ALUMINUM SHEET MANUFACTURER
Description: 5005/5005A Aluminum Sheet is a heat-treatable aluminum alloy sheet, primarily composed of aluminum and magnesium. It exhibits excellent corrosion resistance, particularly in marine environments. Additionally, 5005 aluminum sheet has outstanding weldability and formability, making it widely used in applications such as marine vessels, marine equipment, architectural decoration, automotive body panels, electronic product casings, and more.
Superior Metal Aluminum can customize the production of 5005 aluminum sheet plates, with a thickness of 10-600mm and a width of 300-2800mm.
The Most Common Tempers For 5005/5005A Aluminium Sheet Are:
O - Soft
H14 - Work hardened by rolling to half hard, not annealed after rolling
5005 Aluminum Equivalent Grades
| JIS | UNS | ISO | DIN | W-Nr. | EN/NF | EN | GOST | SS | EN/BS |
| 5005 | - | AlMg1 | AlMg1 | 3.3315 | 5005A | EN AW-AlMg1 | EN AW-5005A | - | - | 5005A |
5005 Chemical Composition Content (%)
| Component | Fe | Si | Mn | Cu | Cr | V | Al | Zn | Mg | Other |
| Min. | - | - | - | - | - | - | Remaining | - | 0.5 | - |
| Max. | 0.7 | 0.3 | 0.2 | 0.2 | 0.1 | - | - | 0.25 | 1.1 | 0.15 |

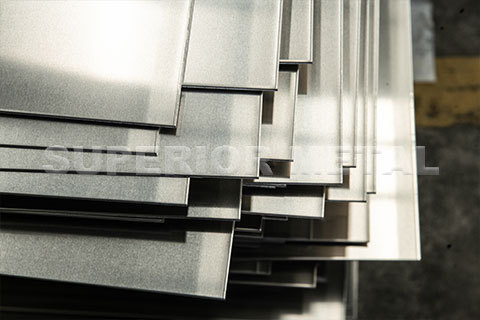

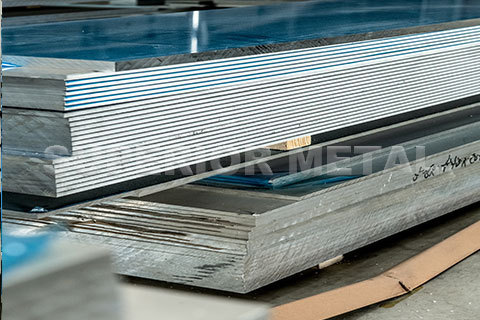

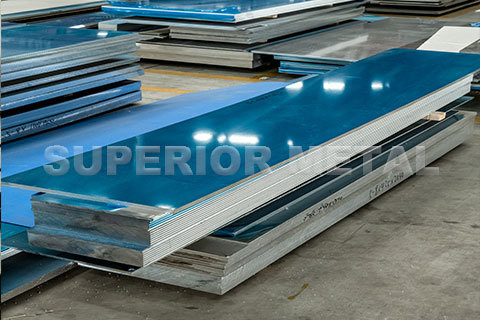

5005 Aluminium Plate Show
| Type | 5005 aluminum flat sheet, 5005A aluminum sheet metal, 5005A alu sheet, 5005 aluminum sheets for sale |
| Standard | GB/T3190-2008, GB/T3880-2006, ASTM B209, EN 573, JIS H4000-2006,etc |
Available Aluminum Grades | 1000, 2000, 3000, 4000, 5000, 6000, 7000series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2A12, 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. g) 7000 Series: 7075, etc. |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28, H32, H112, T651, T3, T451, T4, T6, F, etc |
Common Thickness | 0.1mm - 260mm |
Common Width | 1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size |
Common Length | 1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size |
| Surface | Mill Finish, PVDF/PE Color Coated, Anodized, Embossed, Brushed, Mirror Polish, etc PVC Film Covering Protection (Blue/White) |
OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Quality | Mill Quality Certificate, JB/T9001C, ISO9001, SGS, TUV |
| Delivery | In general, within 7-15 working days after receiving deposit or According to Final order quantity |
| Usage | Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc |
CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
STANDARD SIZES OF ALUMINUM PLATE FACTORY
| Thick | Standard Wdith x Length | Thick | Standard Wdith x Length | Thick | Standard Wdith x Length | Thick | Standard Wdith x Length |
| 0.2mm | 1000x2000mm, 1250x2500mm | 0.3mm | 1000x2000mm, 1250x2500mm | 0.4mm | 1000x2000mm, 1250x2500mm | 0.5mm | 1000x2000mm, 1250x2500mm |
| 0.6mm | 1000x2000mm, 1250x2500mm | 0.8mm | 1219x2438mm, 1250x2500mm | 1.0mm | 1219x2438mm, 1250x2500mm | 1.2mm | 1219x2438mm, 1250x2500mm |
| 1.5mm | 1219x2438mm, 1250x2500mm | 2.0mm | 1219x2438mm, 1250x2500mm | 2.5mm | 1219x2438mm, 1250x2500mm | 3.0mm | 1219x2438mm, 1250x2500mm |
| 4.0mm | 1219x2438mm, 1250x2500mm | 5.0mm | 1219x2438mm, 1250x2500mm | 6.0mm | 1219x2438mm, 1250x2500mm | 8.0mm | 1219x2438mm, 1250x2500mm |
| 10mm | 1250x2500mm, 1500x3000mm | 12mm | 1250x2500mm, 1500x3000mm | 15mm | 1250x2500mm, 1500x3000mm | 20mm | 1250x2500mm, 1500x3000mm |
| 25mm | 1250x2500mm, 1500x3000mm | 30mm | 1250x2500mm, 1500x3000mm | 35mm | 1250x2500mm, 1500x3000mm | 40mm | 1250x2500mm, 1500x3000mm |
| 45mm | 1250x2500mm, 1500x3000mm | 50mm | 1250x2500mm, 1500x3000mm | 55mm | 1250x2500mm, 1500x3000mm | 60mm | 1250x2500mm, 1500x3000mm |
| 65mm | 1250x2500mm, 1500x3000mm | 70mm | 1250x2500mm, 1500x3000mm | 75mm | 1250x2500mm, 1500x3000mm | 80mm | 1250x2500mm, 1500x3000mm |
| 85mm | 1250x2500mm, 1500x3000mm | 90mm | 1250x2500mm, 1500x3000mm | 95mm | 1250x2500mm, 1500x3000mm | 100mm | 1250x2500mm, 1500x3000mm |
| 110mm | 1250x2500mm, 1500x3000mm | 120mm | 1250x2500mm, 1500x3000mm | 130mm | 1250x2500mm, 1500x3000mm | 140mm | 1250x2500mm, 1500x3000mm |
| 150mm | 1250x2500mm, 1500x3000mm | 160mm | 1250x2500mm, 1500x3000mm | 170mm | 1250x2500mm, 1500x3000mm | 180mm | 1250x2500mm, 1500x3000mm |
| 190mm | 1250x2500mm, 1500x3000mm | 200mm | 1250x2500mm, 1500x3000mm | 250mm | 1250x2500mm, 1500x3000mm | 300mm | 1250x2500mm, 1500x3000mm |
| 350mm | 1250x2500mm, 1500x3000mm | 400mm | 1250x2500mm, 1500x3000mm | We Can Customize Any Size, Please Contact US. |
| Remark: |
| Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm, 1250mm x 2500mm and any cut to size |
| Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm, 1219mm x 2438mm (4' x 8'), 1500mm x 3000mm and any cut to size |
