3003 Aluminum Alloy Sheet

● MOQ: 1 Ton Each
● Loading Port: China Port
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.
● Country of Origin: China



E-mail：sale01@jdxtg.com



Tel：+86 13303412199



WhatsApp：8613303412199

Get Live Quotes

3000 SERIES 3003 ALUMINUM PLATE 3003 ALUMINUM SHEET MANUFACTURER

Description: 3003 Aluminum Sheet is a commonly used aluminum alloy sheet, primarily composed of aluminum and manganese. It features good corrosion resistance and weldability, as well as excellent formability and strength. 3003 aluminum sheet finds widespread applications in various industries, including kitchenware, food and chemical handling equipment, storage tanks, building decorative materials, automotive body panels, and electronic components, among others.

Superior Metal Aluminum can customize the production of 3003 aluminum sheet plates, with a thickness of 10-600mm and a width of 300-2800mm.

The Most Common Tempers For 3003 Aluminium Sheet Are:

O - Soft

H14 - Work hardened by rolling to half hard, not annealed after rolling

3003 Aluminum Equivalent Grades

JIS	UNS	ISO	DIN	W-Nr.	EN/NF	EN		GOST	SS	EN/BS
3003	A93003	AlMn1	AlMn1	3.0515	3103	EN AW-AlMn1	EN AW-3103	AMTs	AlMn	3103

3003 Chemical Composition Content (%)

Component	Fe	Si	Mn	Cu	Ti	V	Al	Zn	Mg	Other
Min.	-	-	1	0.05	-	-	Remaining	-	-	-
Max.	0.7	0.6	1.5	0.2	-	-	-	0.1	-	0.15

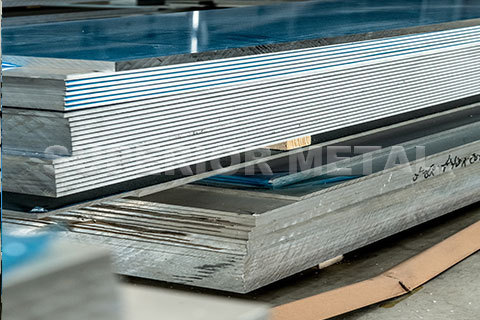

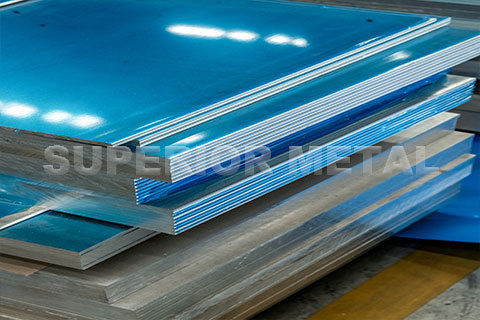

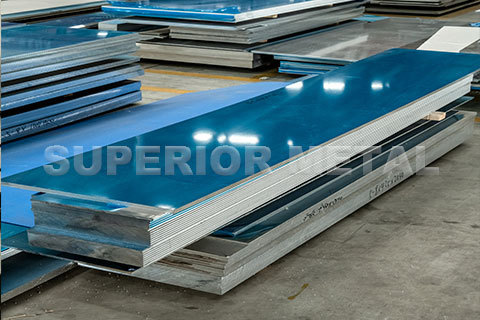

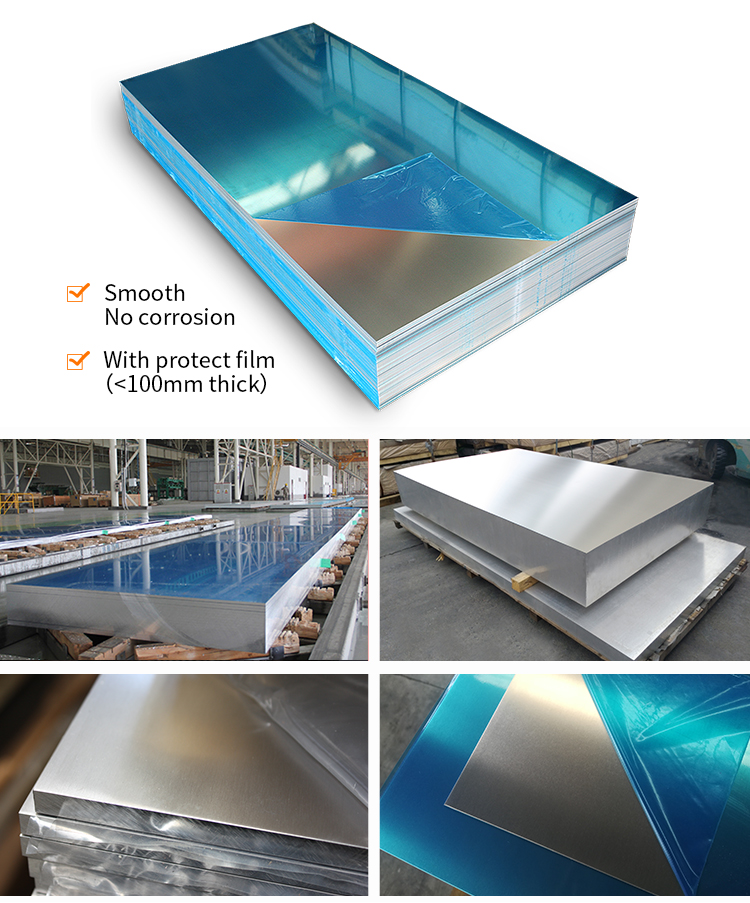

3003 Aluminium Plate Show

Type

3003 aluminum flat sheet,

3003 aluminum sheet metal,

3003 alu sheet,

3003 aluminum sheets for sale

Standard

GB/T3190-2008, GB/T3880-2006,

ASTM B209, EN 573,

JIS H4000-2006,etc

Available

Aluminum

Grades

1000, 2000, 3000, 4000, 5000,

6000, 7000series

a) 1000 Series: 1050, 1060,

1070, 1100, 1200, 1235, etc.

b) 2000 Series: 2A12, 2014,

2024, etc.

c) 3000 Series: 3003, 3004, 3005,

3104, 3105, 3A21, etc.

d) 4000 Series: 4045, 4047,

4343, etc.

e) 5000 Series: 5005, 5052,

5083, 5086, 5154, 5182, 5251,

5454, 5754, 5A06, etc.

f) 6000 Series: 6061, 6063,

6082, 6A02, etc.

g) 7000 Series: 7075, etc.

Temper

O, H12, H14, H16, H18, H22,

H24, H26, H28, H32, H112, T651,

T3, T451, T4, T6, F, etc

Common

Thickness

0.1mm - 260mm

Common

Width

1000mm, 1200mm, 1250mm,

1500mm, 2000mm or any cut to size

Common

Length

1000mm, 2000mm, 2500mm,

3000mm, 6000mm or any cut to size

Surface

Mill Finish, PVDF/PE Color Coated,

Anodized, Embossed, Brushed, Mirror Polish, etc

PVC Film Covering Protection (Blue/White)

OEM service

Perforated, Cutting special size,

Doing flatness, Surface treatment,etc

Quality

Mill Quality Certificate,

JB/T9001C, ISO9001, SGS, TUV

Delivery

In general, within 7-15 working days

after receiving deposit or According to

Final order quantity

Usage

Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc

CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:

Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:

Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12

STANDARD SIZES OF ALUMINUM PLATE FACTORY

Thick	Standard Wdith x Length	Thick	Standard Wdith x Length	Thick	Standard Wdith x Length	Thick	Standard Wdith x Length
0.2mm	1000x2000mm, 1250x2500mm	0.3mm	1000x2000mm, 1250x2500mm	0.4mm	1000x2000mm, 1250x2500mm	0.5mm	1000x2000mm, 1250x2500mm
0.6mm	1000x2000mm, 1250x2500mm	0.8mm	1219x2438mm, 1250x2500mm	1.0mm	1219x2438mm, 1250x2500mm	1.2mm	1219x2438mm, 1250x2500mm
1.5mm	1219x2438mm, 1250x2500mm	2.0mm	1219x2438mm, 1250x2500mm	2.5mm	1219x2438mm, 1250x2500mm	3.0mm	1219x2438mm, 1250x2500mm
4.0mm	1219x2438mm, 1250x2500mm	5.0mm	1219x2438mm, 1250x2500mm	6.0mm	1219x2438mm, 1250x2500mm	8.0mm	1219x2438mm, 1250x2500mm
10mm	1250x2500mm, 1500x3000mm	12mm	1250x2500mm, 1500x3000mm	15mm	1250x2500mm, 1500x3000mm	20mm	1250x2500mm, 1500x3000mm
25mm	1250x2500mm, 1500x3000mm	30mm	1250x2500mm, 1500x3000mm	35mm	1250x2500mm, 1500x3000mm	40mm	1250x2500mm, 1500x3000mm
45mm	1250x2500mm, 1500x3000mm	50mm	1250x2500mm, 1500x3000mm	55mm	1250x2500mm, 1500x3000mm	60mm	1250x2500mm, 1500x3000mm
65mm	1250x2500mm, 1500x3000mm	70mm	1250x2500mm, 1500x3000mm	75mm	1250x2500mm, 1500x3000mm	80mm	1250x2500mm, 1500x3000mm
85mm	1250x2500mm, 1500x3000mm	90mm	1250x2500mm, 1500x3000mm	95mm	1250x2500mm, 1500x3000mm	100mm	1250x2500mm, 1500x3000mm
110mm	1250x2500mm, 1500x3000mm	120mm	1250x2500mm, 1500x3000mm	130mm	1250x2500mm, 1500x3000mm	140mm	1250x2500mm, 1500x3000mm
150mm	1250x2500mm, 1500x3000mm	160mm	1250x2500mm, 1500x3000mm	170mm	1250x2500mm, 1500x3000mm	180mm	1250x2500mm, 1500x3000mm
190mm	1250x2500mm, 1500x3000mm	200mm	1250x2500mm, 1500x3000mm	250mm	1250x2500mm, 1500x3000mm	300mm	1250x2500mm, 1500x3000mm
350mm	1250x2500mm, 1500x3000mm	400mm	1250x2500mm, 1500x3000mm	We Can Customize Any Size, Please Contact US.
Remark:
Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm, 1250mm x 2500mm and any cut to size
Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm, 1219mm x 2438mm (4' x 8'), 1500mm x 3000mm and any cut to size
