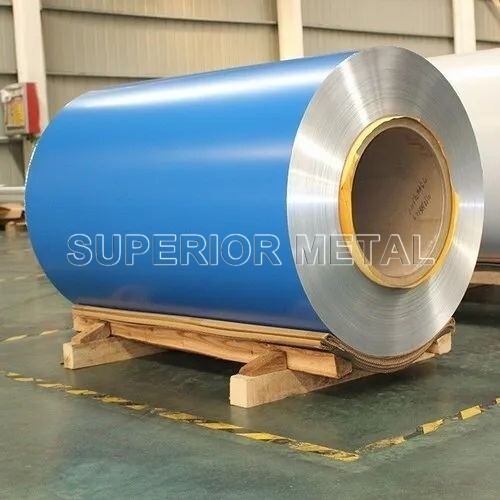

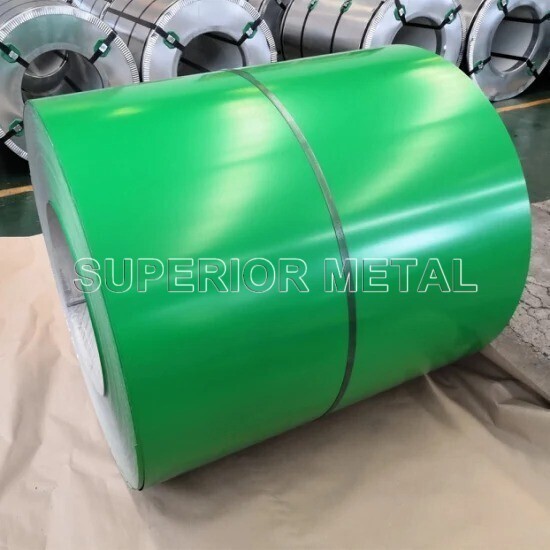

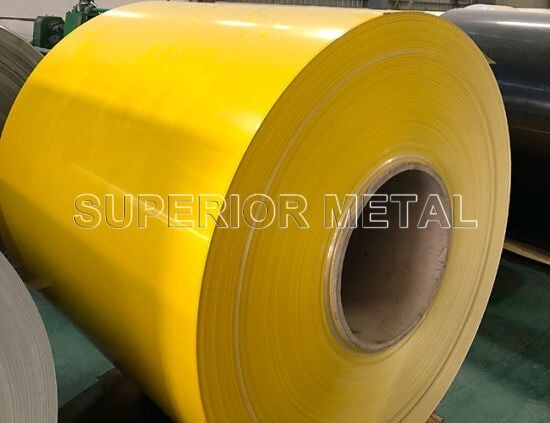

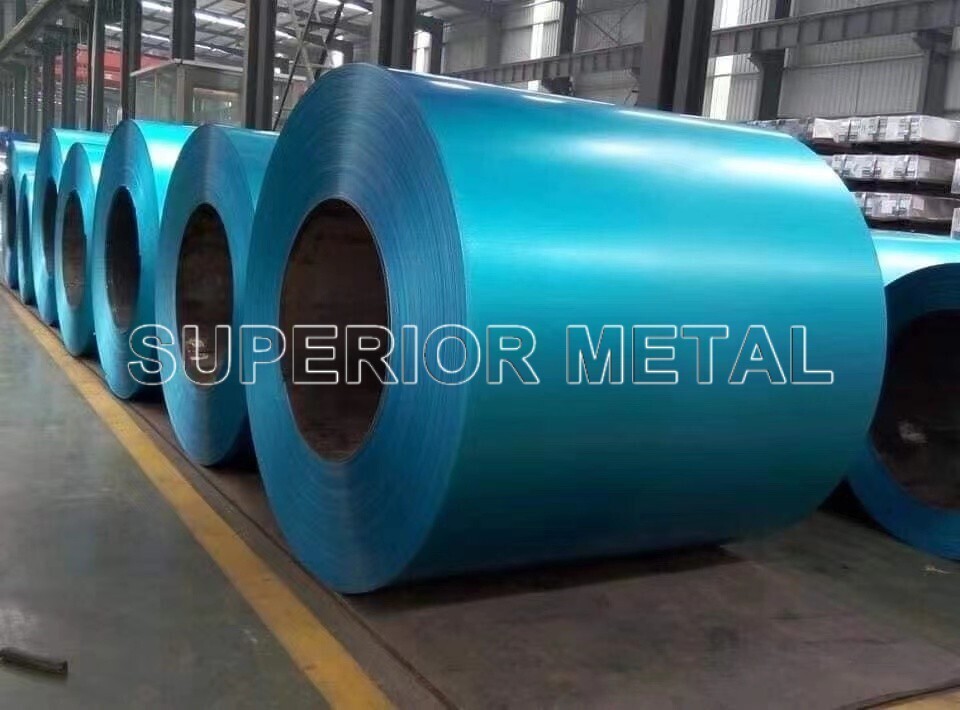

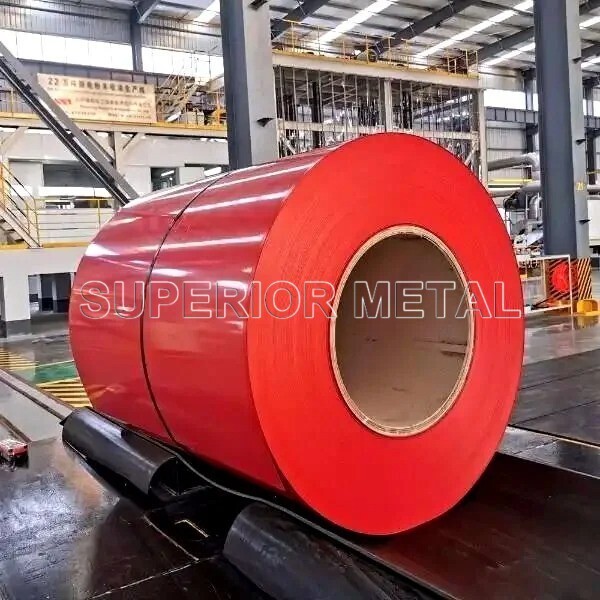

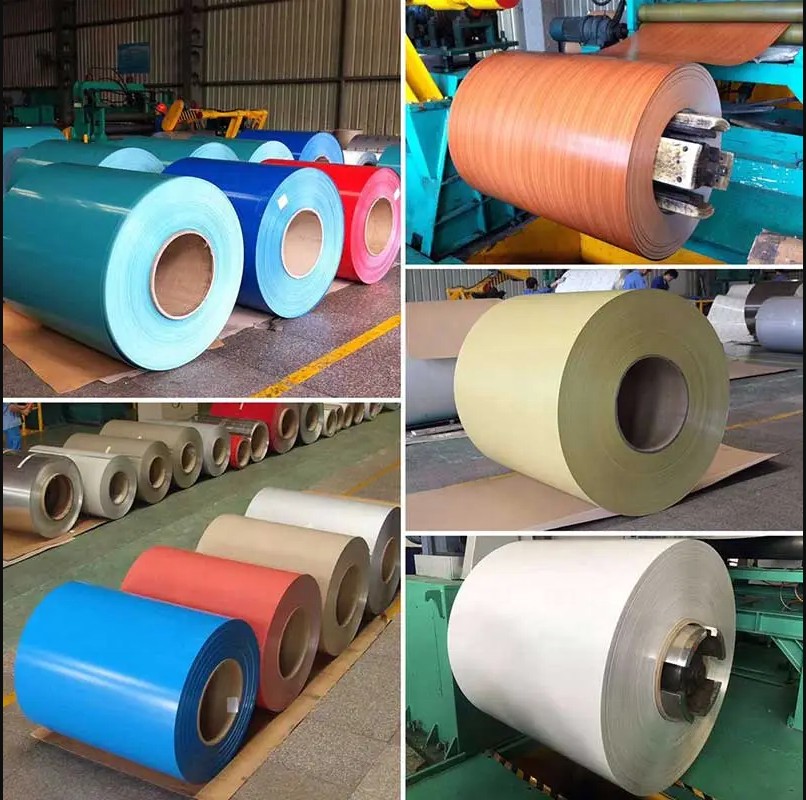

1000 Series 1mm 2mm 3mm 1200 Pre-Painted Aluminium Coil Supplier
Aluminium Coil/ Aluminium Strip is widely used in electronics, packaging, construction, machinery and other fields.It is divided into pure aluminium coil plate, alloy aluminium coil plate, thin aluminium coil plate, medium and thick aluminium coil plate, pattern aluminium coil plate. At present, the aluminum coil sheet grade that our company can supply:1050, 1060, 1070, 1100, 2024，3003, 3004, 3005, 3102, 3105,5005, 5052, 5083, 5086, 5182, 5754, 5154, 5454,6061, 6063, 6082,etc
● Model Number: 1200
● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.
● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.
● Standard Export Package: Wooden Case or Wooden Pallet
● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate
● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV
● Price: Quote according to the Specifications and Order Quantity you need
● Datas Required Before Quotation:
①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways
| Type | 1000 Series 1mm 2mm 3mm 1200 Pre-Painted Aluminium Coil |
| Standard | GB/T3190-2008,GB/T3880-2006 ,ASTM B209,JIS H4000-2006,etc |
| Grades | 1000, 2000, 3000, 4000, 5000, 6000, 7000 series |
a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. |
| b) 2000 Series: 2A12, 2014, 2024, etc. |
c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. |
| d) 4000 Series: 4045, 4047, 4343, etc. |
e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. |
f) 6000 Series: 6061, 6063, 6082, 6A02, etc. |
| g) 7000 Series: 7075, etc. |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28, H32, F, H112, T651, T3, T451, T4, T6, etc |
Common Thickness | 0.1mm - 260mm |
Common Width | 1000mm, 1200mm, 1250mm, 1500mm, 2000mm or any cut to size |
Common Length | 1000mm, 2000mm, 2500mm, 3000mm, 6000mm or any cut to size |
| Surface | Mill finished, Coated, Embossed ,Brushed, Polished, Mirror, Anodized,etc |
OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Quality | Certificate of Test,JB/T9001C ,ISO9001,SGS,TVE |
| Protection | Plastic film covering |
| Delivery | In general, within 7-15 working days after receiving deposit or According to Final order quantity |
| Usage | Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc |
CHEMICAL COMPOSITION OF ALUMINUM COIL STRIP:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM COIL STRIP:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
